Prefabricated bridge elements and systems (PBES)

The systems view of accelerated bridge construction: footings, columns, caps, girders with deck attached, full-depth deck panels and even complete spans as prefabricated modules with engineered connections, assembled on site in days. The game's precast pier and full-span options are parts of this.

How bridges get built · Heavy lift, moving and accelerated construction · Prefabricated bridge elements and systems (PBES)

Also called: PBES, prefabricated bridge units, modular bridge elements

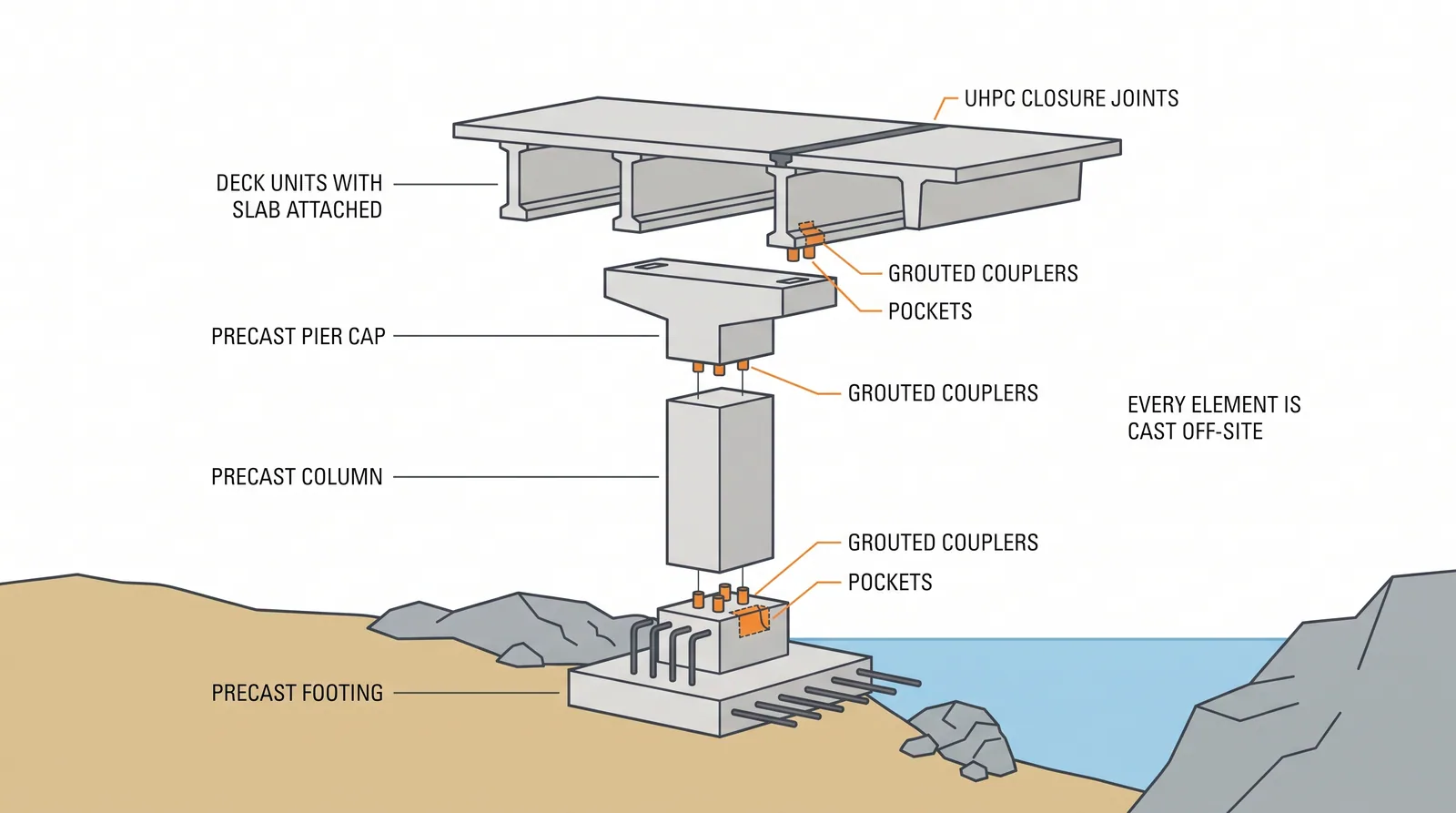

Prefabricated bridge elements and systems (PBES) — concept diagram — Concept diagram (TheBridgeEng)

How it is done

Standardise elements and connections: grouted couplers, UHPC joints, post-tensioned connections.
Fabricate off site in parallel with foundations; deliver in sequence.
Assemble with cranes or SPMTs during short closures; use UHPC or rapid-set grout for connections that reach strength in hours.

Where it fits

Bridge replacements on busy routes, repetitive viaducts, sites with weather windows, seismic regions with tested connections.

Where it does not

One-off geometries, sites without fabrication capacity, projects where connection performance is unproven.

Plant, pace and money

PlantPrecast plant, transport, cranes, grouting and UHPC mixing.

ProductivityDays on site per span.

CostHigher element cost, lower site cost and user delay.

Risks and controls

What goes wrong

Connection quality, tolerance stacking, transport damage.

Quality assurance

Connection mock-ups, grout and UHPC tests, geometry checks at delivery.

Examples

US FHWA Every Day Counts programme; Korean and Japanese modular overpasses.
