Tremie concreting of piles

Concrete for a bored pile is placed through a pipe whose tip stays embedded in the fresh concrete, so the mix displaces the slurry without mixing with it. The mix must flow for hours without segregating; the pour must not stop.

How bridges get built · Bored piles and deep foundations · Tremie concreting of piles

Also called: underwater concrete placement, tremie method, tremie pipe

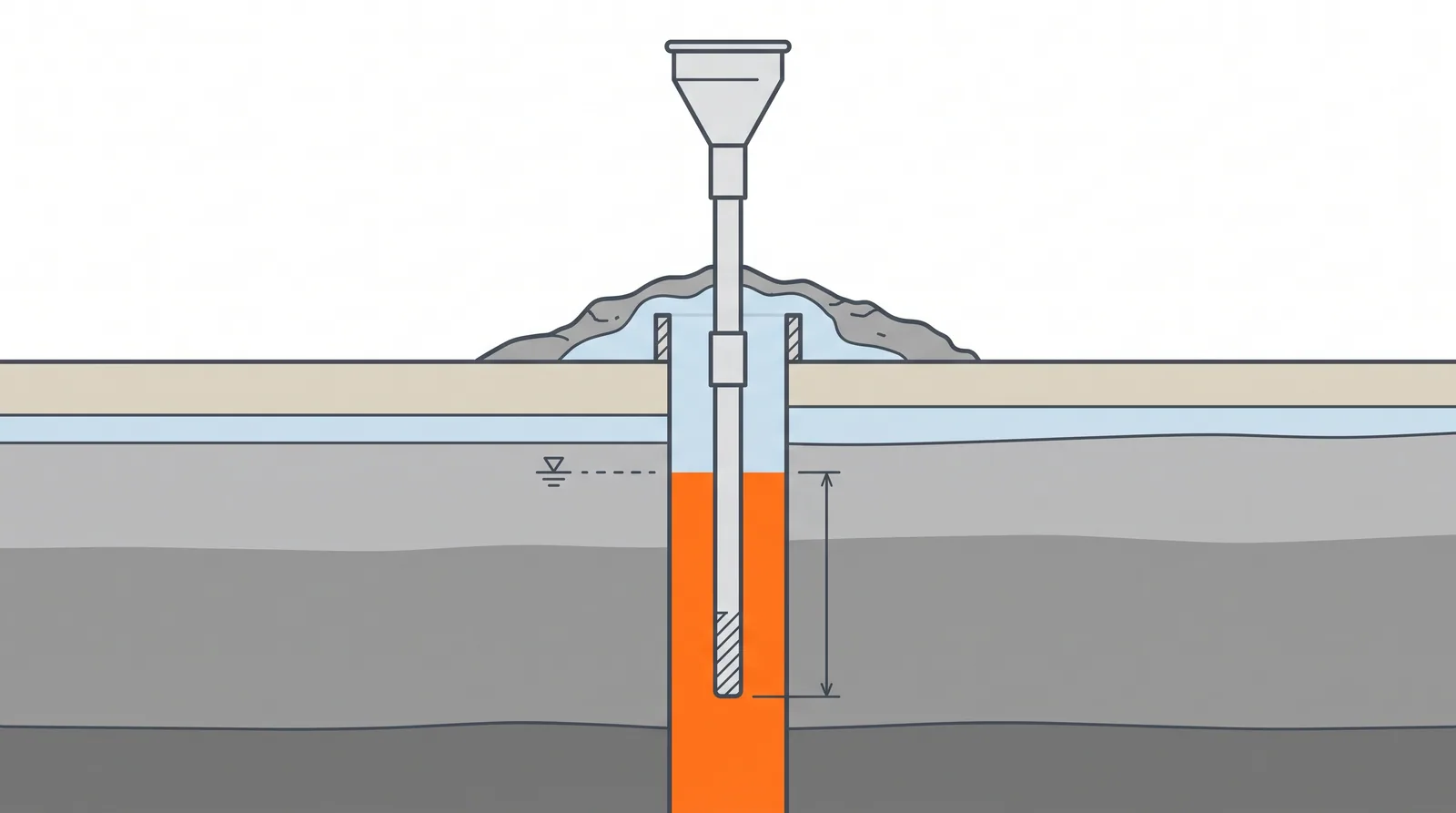

Tremie concreting of piles — concept diagram
Concept diagram (TheBridgeEng)

How it is done

  1. Design a concrete with 180-220 mm slump or a self-compacting mix with retarder for 4-8 hours of workability.
  2. Set the tremie to the base with a plug; start the pour and keep 1-3 m of embedment as the concrete rises; measure the level after every truck.
  3. Withdraw casing as the concrete rises, keeping the concrete head above the outside pressure.
  4. Overpour to bring sound concrete above the cut-off level.

Where it fits

  • All bored piles and barrettes under slurry or water.

Where it does not

  • Mixes that stiffen before the pour ends; interrupted supply.

Plant, pace and money

PlantTremie pipes and hoppers, pump or crane and skip, concrete supply of 30-80 m3 per hour.
ProductivityA 60 m3 pile is poured in one to three hours.
CostConcrete at USD 150-250 per m3 plus placement.

Risks and controls

What goes wrong

  • Tip pulled out of the concrete, cold joints, slurry inclusions, cage floating.

Quality assurance

Pour log with level and volume per truck, slump tests every truck, CSL after 7 days.

Examples

Every bored pile in the game's marine sites.
